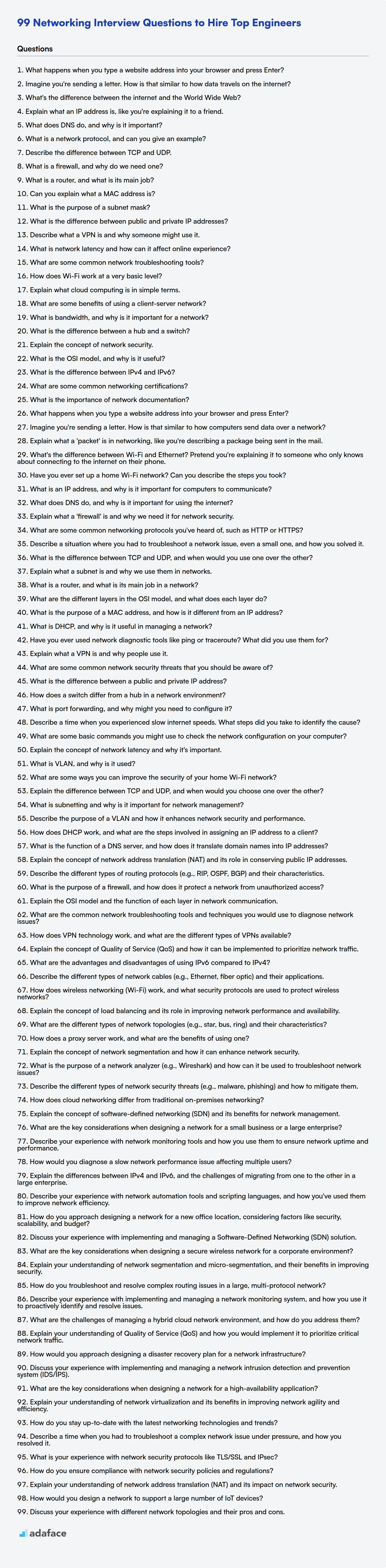

Networking interview questions with detailed answers

An IP address is a unique identifier assigned to each device on a network. It is used to enable communication between devices by specifying the source and destination of data packets.

In computer networking, there are two versions of the Internet Protocol (IP), namely IPv4 and IPv6. IPv4 addresses are 32-bit addresses, while IPv6 addresses are 128-bit addresses. Here's an example of how to retrieve the IP address of a device using Python:

import socket

# get the IP address of the local machine
ip_address = socket.gethostbyname(socket.gethostname())

print(f"IP address: {ip_address}")

This code uses the socket module to retrieve the IP address of the local machine. The gethostname() method returns the hostname of the local machine, and the gethostbyname() method returns the IP address associated with the hostname.

IP addresses are used in a variety of ways in networking, including routing packets between devices, configuring network settings, and identifying network devices. They play a critical role in enabling communication between devices on a network.

A MAC (Media Access Control) address is a unique identifier assigned to a network interface controller (NIC) for use as a network address in communications within a network segment. It is used in networking to provide a physical address for devices that are connected to a network.

Here's an example of how to retrieve the MAC address of a device using Python:

import uuid

# get the MAC address of the local machine
mac_address = ':'.join(['{:02x}'.format((uuid.getnode() >> ele) & 0xff)
                        for ele in range(0, 8*6, 8)][::-1])

print(f"MAC address: {mac_address}")

This code uses the uuid module to retrieve the MAC address of the local machine. The getnode() method returns the MAC address of the network interface controller as a 48-bit integer. This integer is then converted into a string representation of the MAC address with a colon-separated format.

MAC addresses are used in networking to enable communication between devices on a local network segment. They are used by the data link layer of the OSI model to control access to the network medium and to provide a unique physical address for each network device.

DNS (Domain Name System) is a system that translates domain names, which are human-readable names for websites, into IP addresses, which are the numerical addresses used by computers to locate and communicate with websites.

When a user types a domain name into a web browser, the DNS system is used to look up the corresponding IP address. Here's an example of how to perform a DNS lookup using Python:

import socket

# perform a DNS lookup for the given domain name
domain_name = "example.com"
ip_address = socket.gethostbyname(domain_name)

print(f"The IP address of {domain_name} is {ip_address}")

This code uses the socket module to perform a DNS lookup for the domain name "example.com". The gethostbyname() method returns the IP address associated with the domain name.

DNS works by maintaining a distributed database of domain names and their corresponding IP addresses. When a DNS lookup is performed, the request is typically sent to a local DNS resolver, which checks its cache for the requested information. If the information is not in the cache, the resolver queries other DNS servers until it finds the requested information. Once the IP address is obtained, it is returned to the client, which can then use it to communicate with the requested website.

A router and a switch are both devices used in computer networking, but they serve different functions.

A router is a network device that connects multiple networks together and forwards data packets between them. Routers use routing tables to determine the best path for data to take through the network. Here's an example of how to configure a simple router using Python:

import os

# configure the network routing table
os.system("route add -net 192.168.1.0 netmask 255.255.255.0 gw 192.168.0.1")

This code uses the os module to add a route to the network routing table. The route specifies that traffic for the network 192.168.1.0 should be forwarded to the gateway at 192.168.0.1.

A switch is a network device that connects multiple devices together within a single network segment. Switches use MAC addresses to determine the destination of data packets and forward them to the correct device. Here's an example of how to send data between two devices connected to a switch using Python:

import socket

# create a UDP socket
sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

# send data to the destination device
message = b'This is a message'
destination_address = ('192.168.1.2', 10000)
sock.sendto(message, destination_address)

# receive data from the source device
data, source_address = sock.recvfrom(1024)

# close the socket
sock.close()

This code uses the socket module to send and receive data between two devices connected to a switch. The sendto() method sends a message to the specified destination address, and the recvfrom() method receives data and the source address from the sending device.

In summary, routers are used to connect multiple networks together and forward data packets between them, while switches are used to connect devices within a single network segment and forward data packets to the correct device based on its MAC address.

To configure a basic wireless network, you will need a wireless access point and a network connection. Here's an example of how to configure a basic wireless network using Python:

import os

# set up the wireless network interface
os.system("sudo ifconfig wlan0 up")
os.system("sudo iwconfig wlan0 mode master")
os.system("sudo iwconfig wlan0 essid 'MyWirelessNetwork'")
os.system("sudo iwconfig wlan0 key s:MyPassword")

# configure the IP address and routing for the wireless interface
os.system("sudo ifconfig wlan0 192.168.1.1 netmask 255.255.255.0")
os.system("sudo route add -net 192.168.1.0 netmask 255.255.255.0 gw 192.168.1.1")

This code uses the os module to configure the wireless network interface. The ifconfig command is used to bring up the wireless interface, set the IP address, and configure the routing table. The iwconfig command is used to set the access point name and password.

Once the wireless network is configured, devices can connect to it using the access point name and password. The wireless access point will then forward data packets between the devices and the network connection.

Note that the specific commands and syntax used to configure a wireless network may vary depending on the operating system and wireless hardware being used.

A subnet mask is a 32-bit number used to divide an IP address into a network address and a host address. It is used in networking to identify the network portion of an IP address and determine which devices are on the same network. Here's an example of how to apply a subnet mask to an IP address using Python:

ip_address = '192.168.1.100'
subnet_mask = '255.255.255.0'

# convert the IP address and subnet mask to binary
ip_bits = [bin(int(octet))[2:].zfill(8) for octet in ip_address.split('.')]
subnet_bits = [bin(int(octet))[2:].zfill(8) for octet in subnet_mask.split('.')]

# apply the subnet mask to the IP address
network_bits = [str(int(ip_bits[i]) & int(subnet_bits[i], 2)) for i in range(4)]
network_address = '.'.join(network_bits)

# print the network address
print(network_address)

This code uses Python to apply a subnet mask to an IP address. The bin() function is used to convert each octet of the IP address and subnet mask to binary, and the zfill() method is used to ensure that each binary string is 8 bits long. The & operator is used to perform a bitwise AND operation on each binary string to obtain the network bits. Finally, the network bits are converted back to decimal form and joined together to form the network address.

In summary, a subnet mask is used in networking to divide an IP address into a network address and a host address, and to determine which devices are on the same network.

Here are some general steps to troubleshoot basic network connectivity issues:

1. Check physical connections: Ensure that all cables are properly connected and functioning.
2. Check IP settings: Make sure that the IP address, subnet mask, gateway, and DNS server settings are correct.
3. Ping the loopback address: Test the network card by pinging the loopback address (127.0.0.1). If the loopback test fails, there may be a problem with the network card or driver.
4. Ping the gateway: Ping the default gateway to ensure that the computer can communicate with other devices on the same network.
5. Ping an external address: Test connectivity to an external address, such as a public DNS server (e.g. 8.8.8.8).

Here's an example of how to perform a ping test in Python:

import os

# ping the loopback address
os.system("ping 127.0.0.1")

# ping the gateway
os.system("ping 192.168.1.1")

# ping an external address
os.system("ping 8.8.8.8")

This code uses the os module to execute ping commands in the command prompt. The ping command is used to test network connectivity by sending ICMP echo request packets to the specified address. The os.system() method is used to execute the ping command in the command prompt.

In summary, troubleshooting basic network connectivity issues typically involves checking physical connections, verifying IP settings, and performing ping tests to test connectivity to other devices on the network.

A firewall is a network security device that monitors and filters incoming and outgoing network traffic based on an organization's previously established security policies. It is used to protect a network from unauthorized access, malware, and other security threats. A firewall can be implemented in hardware, software, or a combination of both. Here's an example of how to configure a basic firewall using Python and the iptables command:

import subprocess

# enable firewall
subprocess.call("iptables --flush", shell=True)
subprocess.call("iptables -P INPUT DROP", shell=True)
subprocess.call("iptables -P OUTPUT DROP", shell=True)
subprocess.call("iptables -P FORWARD DROP", shell=True)

# allow established connections
subprocess.call("iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT", shell=True)
subprocess.call("iptables -A OUTPUT -m state --state ESTABLISHED,RELATED -j ACCEPT", shell=True)

# allow incoming traffic on specific ports
subprocess.call("iptables -A INPUT -p tcp --dport 22 -j ACCEPT", shell=True)
subprocess.call("iptables -A INPUT -p tcp --dport 80 -j ACCEPT", shell=True)

# allow outgoing traffic on specific ports
subprocess.call("iptables -A OUTPUT -p tcp --dport 443 -j ACCEPT", shell=True)
subprocess.call("iptables -A OUTPUT -p udp --dport 53 -j ACCEPT", shell=True)

# save firewall rules
subprocess.call("iptables-save > /etc/iptables/rules.v4", shell=True)

This code uses Python and the subprocess module to configure a basic firewall using the iptables command in Linux. The iptables command is used to set up and configure the firewall rules. The first few commands enable the firewall and set the default policy to DROP, which means that all incoming and outgoing traffic is blocked by default. The next few commands allow established connections and specific ports for incoming and outgoing traffic. Finally, the last command saves the firewall rules to a file for future use.

In summary, a firewall is a network security device that monitors and filters incoming and outgoing network traffic to protect a network from security threats. It can be implemented in hardware, software, or a combination of both, and can be configured using various commands and tools, such as iptables in Linux.

TCP (Transmission Control Protocol) and UDP (User Datagram Protocol) are two different transport layer protocols used in networking. TCP is a connection-oriented protocol, which means that it establishes a reliable and ordered data transfer between two devices. On the other hand, UDP is a connectionless protocol, which means that it does not establish a reliable and ordered data transfer between two devices. Here's an example of how to send data using TCP and UDP protocols in Python:

# TCP example
import socket

# create a TCP socket
tcp_socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)

# connect to a server
tcp_socket.connect(('192.168.0.1', 8080))

# send data
tcp_socket.send(b'Hello, TCP!')

# receive data
data = tcp_socket.recv(1024)

# close the connection
tcp_socket.close()

# UDP example
import socket

# create a UDP socket
udp_socket = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)

# send data
udp_socket.sendto(b'Hello, UDP!', ('192.168.0.1', 8080))

# receive data
data, addr = udp_socket.recvfrom(1024)

# close the socket
udp_socket.close()

In the TCP example, a connection is established between the client and server using the socket.connect() method, and data is sent using the socket.send() method. The socket.recv() method is used to receive data. Finally, the connection is closed using the socket.close() method.

In the UDP example, no connection is established between the client and server. Instead, data is sent using the socket.sendto() method and received using the socket.recvfrom() method. Finally, the socket is closed using the socket.close() method.

In summary, TCP is a connection-oriented protocol that provides reliable and ordered data transfer between two devices, while UDP is a connectionless protocol that does not provide reliable and ordered data transfer. Both protocols have their own advantages and disadvantages and are used for different purposes in networking.

A hub and a switch are both network devices used to connect multiple devices in a local area network (LAN). However, there is a fundamental difference between them.

A hub is a multiport repeater that broadcasts all incoming data to all ports, whereas a switch is a multiport bridge that sends data only to the intended device. As a result, switches are generally faster and more secure than hubs. Here's an example of how to create a hub and a switch using Python:

# Hub example
import socket

# create a UDP socket for receiving data
hub_socket = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
hub_socket.bind(('192.168.0.1', 8080))

# receive and broadcast data to all connected devices
while True:
    data, addr = hub_socket.recvfrom(1024)
    hub_socket.sendto(data, ('192.168.0.2', 8080))
    hub_socket.sendto(data, ('192.168.0.3', 8080))
    hub_socket.sendto(data, ('192.168.0.4', 8080))

# Switch example
import socket

# create a dictionary of connected devices and their MAC addresses
devices = {
    '00:11:22:33:44:55': '192.168.0.2',
    '66:77:88:99:AA:BB': '192.168.0.3',
    'CC:DD:EE:FF:00:11': '192.168.0.4'
}

# create a UDP socket for receiving data
switch_socket = socket.socket(socket.AF_INET, socket.SOCK_DGRAM)
switch_socket.bind(('192.168.0.1', 8080))

# receive and forward data to the intended device
while True:
    data, addr = switch_socket.recvfrom(1024)
    dst_mac = data[:6]
    if dst_mac in devices:
        dst_ip = devices[dst_mac]
        switch_socket.sendto(data, (dst_ip, 8080))

In the hub example, all incoming data is received using the socket.recvfrom() method and broadcast to all connected devices using the socket.sendto() method.

In the switch example, a dictionary of connected devices and their MAC addresses is created, and incoming data is received and forwarded to the intended device based on its MAC address. The destination MAC address is extracted from the incoming data, and if it matches a device in the dictionary, the data is forwarded to the corresponding IP address using the socket.sendto() method.

When a packet needs to move from one network to another, it follows a specific path known as the routing path. The routing path is determined by the routing table on each device along the way.

The routing table is a collection of network routes and their associated gateways, used to determine the next hop for packets. The routing path is determined by comparing the destination IP address of the packet with the routing table on each device, until the packet reaches its destination network.

Here's an example of how a packet moves from one network to another using the traceroute command in Linux:

$ traceroute google.com
traceroute to google.com (172.217.167.174), 30 hops max, 60 byte packets
 1  192.168.0.1 (192.168.0.1)  1.077 ms  1.350 ms  1.640 ms
 2  10.1.1.1 (10.1.1.1)  5.070 ms  5.329 ms  5.524 ms
 3  172.16.1.1 (172.16.1.1)  8.555 ms  8.787 ms  9.004 ms
 4  192.168.1.1 (192.168.1.1)  11.479 ms  11.763 ms  11.981 ms
 5  203.0.113.1 (203.0.113.1)  15.130 ms  15.416 ms  15.617 ms
 6  203.0.113.2 (203.0.113.2)  18.280 ms  18.554 ms  18.797 ms
 7  172.217.167.174 (172.217.167.174)  21.173 ms  21.467 ms  21.673 ms

In this example, the traceroute command is used to show the routing path from the local network to google.com. The command sends a series of packets with increasing time-to-live (TTL) values, and each device along the way decrements the TTL value and sends an ICMP error message when it reaches zero.

The output shows the IP addresses of each device along the routing path, along with the time it took for the packet to reach each device. The routing path is determined by the routing table on each device, which determines the next hop for each packet based on its destination IP address.

In computer networking, a gateway is a network node that serves as an access point to another network. It acts as a bridge between different networks, providing a path for data to travel between them.

In order for devices on one network to communicate with devices on another network, they must pass through a gateway that is configured to handle the traffic between the networks. The gateway typically performs address translation and other functions to ensure that the data is properly routed to its destination.

Here's an example of configuring a gateway on a Linux system using the route command:

$ route add default gw 192.168.1.1

In this example, the route command is used to add a default gateway with the IP address of 192.168.1.1. This command tells the system to send any traffic that is not destined for the local network to the specified gateway, which will forward the traffic to its destination network.

To configure a static IP address on a network, you need to assign a fixed IP address to a device on the network. Here's how to do it on a Windows system:

1. Open the Control Panel and click on "Network and Sharing Center"
2. Click on "Change adapter settings"
3. Right-click on the network adapter you want to configure and select "Properties"
4. Select "Internet Protocol Version 4 (TCP/IPv4)" and click on "Properties"
5. Select "Use the following IP address" and enter the IP address, subnet mask, and default gateway for the network
6. Enter the IP addresses of one or more DNS servers, if necessary
7. Click "OK" to save the settings

Here's an example of configuring a static IP address on a Linux system using the ifconfig command:

$ sudo ifconfig eth0 192.168.1.100 netmask 255.255.255.0

In this example, the ifconfig command is used to set the IP address of the eth0 network interface to 192.168.1.100 with a subnet mask of 255.255.255.0. This command assigns a static IP address to the device on the network.

In computer networking, a broadcast address is a special IP address that is used to send a message to all devices on a network. It is typically used to send network-wide messages, such as network discovery or configuration updates.

The broadcast address is usually the last address in a network range, and it is identified by setting all host bits in the IP address to 1. For example, if the IP address of a device on a network is 192.168.1.10 with a subnet mask of 255.255.255.0, the broadcast address for that network would be 192.168.1.255.

Here's an example of using the ping command to send a broadcast message on a Linux system:

$ ping 192.168.1.255

In this example, the ping command is used to send a message to all devices on the 192.168.1.0/24 network by sending a packet to the broadcast address 192.168.1.255. All devices on the network that are configured to receive broadcast messages will receive the packet.

To determine the speed and duplex settings of a network interface, you can use the ethtool command on Linux systems. This command allows you to view and change the settings of a network interface.

To view the current speed and duplex settings of an interface, run the following command:

$ ethtool eth0

This will display information about the specified interface, including its speed and duplex settings. For example:

Settings for eth0:
        Supported ports: [ TP ]
        Supported link modes:   10baseT/Half 10baseT/Full
                                100baseT/Half 100baseT/Full
        Supported pause frame use: No
        Supports auto-negotiation: Yes
        Advertised link modes:  10baseT/Half 10baseT/Full
                                100baseT/Half 100baseT/Full
        Advertised pause frame use: No
        Advertised auto-negotiation: Yes
        Speed: 100Mb/s
        Duplex: Full
        Port: Twisted Pair
        PHYAD: 1
        Transceiver: internal
        Auto-negotiation: on
        MDI-X: off
        Supports Wake-on: g
        Wake-on: g
        Current message level: 0x000000ff (255)
        Link detected: yes

In this example, the interface eth0 is running at a speed of 100Mb/s and is set to full duplex mode.

You can also use the mii-tool command on older Linux systems to view the speed and duplex settings of an interface. For example:

$ mii-tool eth0
eth0: negotiated 100baseTx-FD, link ok

This shows that the interface eth0 is negotiated at a speed of 100Mb/s and full duplex mode. However, the mii-tool command has been deprecated in favor of ethtool.

To troubleshoot DNS resolution issues, you can follow these steps:

1. Check your network settings: Ensure that your computer is connected to the network and has the correct IP configuration and DNS server settings.
2. Ping the DNS server: Use the ping command to verify that you can reach the DNS server.

   ping <DNS server IP address>


3. Test DNS resolution: Use the nslookup command to test DNS resolution.

   nslookup <domain name>


4. Check the DNS server configuration: Ensure that the DNS server is configured correctly and is accessible.
5. Flush the DNS cache: Use the ipconfig command to flush the DNS cache.

   ipconfig /flushdns


6. Use an alternative DNS server: Try using a different DNS server, such as Google's public DNS server (8.8.8.8).

If none of these steps work, there may be a more complex issue with the network or DNS configuration that requires further investigation.

NAT (Network Address Translation) is a process used to modify IP address information in IP packet headers while they are in transit across a traffic routing device, to remap one IP address space into another. NAT is used to allow devices on a private network to communicate with the public internet. The NAT device translates the private IP addresses of the devices on the private network to a public IP address before sending packets out to the internet. When responses come back from the internet, the NAT device translates the public IP address back to the private IP address and forwards the packets to the correct device.

Here is an example of how to configure NAT on a Cisco router:

interface gigabitethernet0/1
ip address 192.168.1.1 255.255.255.0
ip nat inside

interface gigabitethernet0/0
ip address 203.0.113.1 255.255.255.0
ip nat outside

ip nat inside source list 1 interface gigabitethernet0/0 overload

access-list 1 permit 192.168.1.0 0.0.0.255

In this example, the router has two interfaces, one connected to the private network and the other to the internet. The NAT configuration translates the private IP addresses to the public IP address on the outside interface when packets are sent out to the internet, and translates the public IP address back to the private IP address on the inside interface when packets are received from the internet. The access list defines which IP addresses are allowed to use NAT.

To configure port forwarding on a router, you need to access the router's web interface and look for the port forwarding or virtual servers section. Then, create a new rule that specifies the incoming and outgoing ports, the protocol (TCP or UDP), the internal IP address of the device you want to forward traffic to, and the duration of the rule. Here's an example using a D-Link router's web interface:

1. Log in to the router's web interface.
2. Go to the "Advanced" tab and then "Port Forwarding".
3. Click "Add Rule".
4. Enter a name for the rule.
5. Enter the IP address of the device you want to forward traffic to.
6. Enter the external and internal ports and select the protocol (TCP, UDP or both).
7. Click "Apply" to save the rule.

After the rule is saved, incoming traffic to the specified port will be forwarded to the internal IP address you specified, allowing devices on the internet to connect to the service on your local network.

A MAC table (Media Access Control table) is a list of MAC addresses and the associated ports on a network switch. The switch uses the MAC table to determine which port to send incoming frames to, based on the destination MAC address. When a frame is received on a port, the switch checks the MAC address of the source device and updates its MAC table with the port number that the frame was received on. Here's an example of viewing the MAC table on a Cisco switch:

switch# show mac address-table
          Mac Address Table
-------------------------------------------
Vlan    Mac Address       Type        Ports
----    -----------       --------    -----
   1    0011.2233.4455    DYNAMIC     Fa0/1
   1    00aa.bbbb.cccc    DYNAMIC     Fa0/2
   1    00bb.cccc.dddd    DYNAMIC     Fa0/3
Total Mac Addresses for this criterion: 3

In the example above, the MAC table shows the MAC addresses learned on VLAN 1, their type (dynamic or static), and the port that the frames were received on. This information is used by the switch to forward frames to the appropriate destination device.

A managed switch provides the network administrator with the ability to configure and manage the switch, allowing for greater control over the network. It provides features such as port monitoring, VLAN configuration, link aggregation, and Quality of Service (QoS) settings. An unmanaged switch, on the other hand, is a plug-and-play device that requires no configuration and has no advanced features. It simply allows devices on the network to communicate with each other. Code snippets are not relevant to this question.

Network topology refers to the physical or logical layout of a network. There are several different types of network topologies, including:

• Bus: Devices are connected to a central cable, with messages transmitted in both directions along the cable.
• Star: Devices are connected to a central hub or switch, with messages transmitted through the hub or switch.
• Ring: Devices are connected in a circular manner, with messages transmitted in one direction around the ring.
• Mesh: Devices are connected to each other in a non-linear pattern, with messages potentially taking multiple paths to reach their destination.

The maximum length for a Category 5e Ethernet cable is 100 meters (328 feet). This length is important because the signal degrades over distance, and if the cable is too long, the network may not function properly. Additionally, exceeding the maximum cable length can cause interference and crosstalk with other devices on the network. To ensure proper network performance, it is important to use the appropriate cable length for the specific networking needs.

To configure a wireless access point (WAP), follow these steps:

1. Connect your WAP to your network using an Ethernet cable and power it on.
2. Log in to your WAP's web interface using a computer connected to the same network.
3. Configure the basic settings of your WAP, such as the SSID (network name) and security settings.
4. Choose the wireless channel and set the transmission power.
5. Configure advanced settings, such as the DHCP server, network bridge, or VLANs, if needed.
6. Save your settings and exit the web interface.

Here is an example of how to configure the basic settings of a WAP using the command line interface (CLI) of a Cisco wireless access point:

enable
configure terminal
interface Dot11Radio0
ssid example-network
authentication open
authentication key-management wpa version 2
wpa-psk ascii 0 password
exit
interface Dot11Radio0.1
encapsulation dot1Q 1 native
bridge-group 1
exit
ip dhcp pool example-pool
network 192.168.1.0 255.255.255.0
default-router 192.168.1.1
exit

This example sets the SSID of the network to "example-network", enables WPA2 security with a pre-shared key of "password", sets the native VLAN to 1, and configures a DHCP pool with a default gateway of 192.168.1.1.

A default gateway is a node or device on a network that serves as an access point or entrance to another network. It acts as a router that allows devices on the network to communicate with other networks. When a device needs to communicate with a device on a different network, it sends the data to the default gateway, which then forwards the data to the appropriate network. The default gateway is typically the router on the network, and it is important because it enables communication between devices on different networks. Code snippets are not necessary for this concept.

When troubleshooting DHCP lease issues on a network, the following steps can be helpful:

1. Check the DHCP server to ensure that it is running and has available IP addresses in its pool.
2. Check the DHCP configuration on the server to ensure that it is correctly configured for the network.
3. Verify that the DHCP client is properly configured to receive an IP address automatically.
4. Check the DHCP lease on the client to see if it has expired or is conflicting with another device.
5. Restart the client machine and the DHCP server if necessary.

Code snippets can vary depending on the operating system and network configuration, but some examples are:

Checking DHCP service status on Linux:

systemctl status dhcpd

Checking DHCP pool status on Windows:

netsh dhcp server scope 192.168.1.0 show clients

Renewing DHCP lease on macOS:

sudo ipconfig set en0 DHCP

A unicast packet is sent from one source to one destination, while a multicast packet is sent from one source to a group of destinations. Unicast packets are typically used for one-to-one communication, while multicast packets are used for one-to-many communication. In a multicast scenario, the sender sends a single copy of the packet, which is then replicated by the network and delivered to all the recipients. Multicast packets are typically used for streaming applications and group communication. Here is an example of sending a unicast packet using the ping command:

ping 192.168.1.1

And here is an example of sending a multicast packet using the mcasttest tool:

mcasttest -s 239.255.1.1 -p 5000 -i eth0 -t 10

A broadcast storm is a network problem that occurs when a broadcast packet is continuously forwarded by network switches, creating an endless loop that generates unnecessary traffic, consumes network bandwidth and may bring the network to a halt. To prevent broadcast storms, network administrators may implement measures such as broadcast storm control, which sets a threshold for the amount of broadcast traffic allowed on the network, or Spanning Tree Protocol (STP), which detects and disables loops in the network topology. Other strategies may include segmenting the network or reducing the use of broadcast traffic.

A crossover cable is a special type of Ethernet cable that is used to connect two devices of the same type (e.g. two computers or two switches) directly to each other. In a standard Ethernet cable, the transmit (Tx) and receive (Rx) pins are wired differently on each end. In a crossover cable, these pins are reversed on one end, allowing the two devices to communicate. Crossover cables are generally not needed in modern networks as most devices support Auto MDI-X, which automatically detects the type of cable and configures the connection appropriately.

To determine the bandwidth requirements for a network, you need to know the amount of traffic that will be passing through the network at any given time. This can be done by analyzing the traffic patterns on the network or by calculating the amount of data that will be transferred over the network. Bandwidth requirements are typically measured in bits per second (bps) or a multiple thereof, such as kilobits per second (Kbps), megabits per second (Mbps), or gigabits per second (Gbps). Network monitoring tools can be used to measure the actual bandwidth usage on a network.

A network switch is a device that connects multiple devices on a local area network (LAN) and intelligently directs data to its intended destination. Switches use the Media Access Control (MAC) address of each device to determine where to send data, making them faster and more efficient than hubs. Switches may have features such as VLANs, Quality of Service (QoS), port mirroring, and Link Aggregation Control Protocol (LACP). VLANs enable network administrators to segment a LAN into virtual networks for better security and traffic management, while QoS can prioritize certain types of traffic to improve network performance. Port mirroring can be used for troubleshooting and monitoring, and LACP allows multiple physical connections to be bundled together for higher bandwidth and redundancy.

A router is a network device that connects two or more networks and forwards data packets between them based on their IP addresses. When a packet arrives at the router, it checks the destination IP address, looks up the best path in its routing table, and sends the packet out the appropriate interface. Routers also support features such as network address translation (NAT), access control lists (ACLs), and quality of service (QoS) to prioritize traffic. Some routers also have built-in firewalls and VPN support for enhanced security.

Here's an example of how a router might be configured in Python using the netmiko library:

from netmiko import ConnectHandler

# Define device parameters
router = {
    "device_type": "cisco_ios",
    "ip": "192.168.1.1",
    "username": "admin",
    "password": "password",
}

# Connect to router
net_connect = ConnectHandler(**router)

# Configure interface IP address
net_connect.send_config_set(["interface gigabitethernet0/0", "ip address 192.168.2.1 255.255.255.0"])

# Save configuration
net_connect.save_config()

A VLAN (Virtual Local Area Network) is a logical network segment that allows network administrators to group network nodes based on different criteria, regardless of their physical location. It enables network segmentation and isolation to improve network performance and security. A VLAN can be created based on department, function, or application, and network traffic can be kept separate between VLANs, even if they share the same physical network infrastructure. VLANs can be configured on switches, routers, and firewalls using different protocols such as IEEE 802.1Q, ISL, and VTP.

Here is an example of how to create a VLAN using the vlan command in Cisco IOS:

Switch(config)# vlan 10
Switch(config-vlan)# name SALES
Switch(config-vlan)# exit

Quality of Service (QoS) allows you to prioritize network traffic and allocate bandwidth to specific applications or services. QoS settings can be configured on network devices, such as routers and switches, to help ensure that critical traffic is not slowed down by non-critical traffic. This can be particularly important in networks where multiple applications or services compete for limited bandwidth. To configure QoS, you need to identify the traffic that requires priority and assign the appropriate QoS settings. This can typically be done using the device's web interface or command-line interface. Here's an example of configuring QoS on a Cisco router:

interface FastEthernet0/0
 ip address 192.168.1.1 255.255.255.0
 speed 100
 duplex full
 service-policy input QOS-TRAFFIC

access-list 100 permit tcp any any eq 80
access-list 100 permit udp any any eq 53
access-list 100 permit tcp any any eq 22
access-list 100 permit icmp any any

class-map HTTP
 match access-group 100

policy-map QOS-TRAFFIC
 class HTTP
  priority percent 30
 class class-default
  fair-queue

In this example, QoS settings are configured on the FastEthernet0/0 interface of the router. The access list 100 is used to identify the traffic that requires priority, which in this case includes HTTP, DNS, SSH, and ICMP traffic. A class map is created to match this traffic, and a policy map is used to allocate bandwidth to the HTTP traffic using the priority command. The fair-queue command is used to allocate bandwidth to all other traffic.

A Virtual Private Network (VPN) is a secure and encrypted network connection that is established over the internet, providing remote users with secure access to a private network. A VPN can be used to provide a secure connection between remote locations or remote workers and an organization's internal network. VPNs can be configured to use various encryption protocols such as OpenVPN, L2TP/IPSec, and PPTP. By using a VPN, data transmitted over the internet is protected from eavesdropping and unauthorized access. VPNs can also be used to bypass geographic restrictions, providing users with access to content that may be blocked in their region.

There are several types of wireless encryption used to secure wireless networks:

1. Wired Equivalent Privacy (WEP): The original wireless encryption standard that is now considered insecure.
2. Wi-Fi Protected Access (WPA): A more secure encryption standard that replaced WEP.
3. Wi-Fi Protected Access II (WPA2): An even more secure encryption standard that uses Advanced Encryption Standard (AES) instead of Temporal Key Integrity Protocol (TKIP) used in WPA.
4. Wi-Fi Protected Access III (WPA3): The most recent wireless encryption standard that further strengthens security by using stronger encryption algorithms and features like Simultaneous Authentication of Equals (SAE) to protect against password guessing attacks.

Encryption can be configured on a wireless access point (WAP) using various encryption protocols and key lengths. Below is an example of how to configure WPA2 encryption with a pre-shared key (PSK) on a Cisco WAP:

# Enable WPA2 encryption with a PSK
WAP(config)# wireless security wpa wpa2-personal
WAP(config-wpa-psk)# encryption aes
WAP(config-wpa-psk)# passphrase MySecurePassword

A load balancer is a device or software that distributes incoming network traffic across multiple servers to improve efficiency, reliability, and availability of applications, websites, or services. Load balancers work by monitoring the health of the servers and distributing traffic based on predefined rules, such as round-robin, least connections, IP hash, or content-based routing. Load balancers can also perform SSL offloading, TCP and HTTP optimization, and provide redundancy and failover capabilities. Here is an example of a load balancer configuration using NGINX:

http {
    upstream app_servers {
        server app1.example.com;
        server app2.example.com;
        server app3.example.com;
    }

    server {
        listen 80;
        server_name example.com;

        location / {
            proxy_pass http://app_servers;
        }
    }
}

Troubleshooting advanced network connectivity issues can be complex and time-consuming. The following steps can be helpful:

1. Verify network connectivity using basic network utilities such as ping and traceroute.
2. Check for errors or misconfigurations on networking devices such as routers and switches.
3. Analyze network traffic using packet capturing tools such as Wireshark to identify anomalies or errors.
4. Check network security configurations, including firewall rules and access control lists.
5. Consult vendor documentation and online resources for known issues or troubleshooting tips.

Here is an example of using the ping utility to test network connectivity:

ping 192.168.1.1

This command sends an ICMP echo request to the IP address 192.168.1.1 and waits for a response. If the response is received, the network connection is considered active.

In networking, multicast is a method of sending network traffic from a single source to multiple recipients. The source sends a single copy of the data, which is then replicated by the network and sent to all devices that have subscribed to the multicast group. This can be used for applications such as streaming video or audio, where the same content is sent to a large number of recipients. Multicast traffic is identified by a multicast address, which is in the range of 224.0.0.0 to 239.255.255.255. Routing protocols such as Protocol Independent Multicast (PIM) are used to manage the distribution of multicast traffic in a network.

A proxy server is an intermediary server between clients and the Internet. It receives requests from clients and forwards them to the destination server. The proxy server can be used to cache web pages, filter traffic, and increase security. The clients communicate with the proxy server instead of directly communicating with the Internet, which can improve performance and security. Here's an example of how to set up a basic HTTP proxy server using Squid on Linux:

sudo apt-get update
sudo apt-get install squid

# Edit the configuration file /etc/squid/squid.conf
# to specify allowed clients and configure caching and filtering

sudo systemctl start squid
sudo systemctl enable squid

Layer 2 switches operate at the Data Link Layer of the OSI model, while Layer 3 switches operate at the Network Layer. Layer 2 switches use MAC addresses to forward frames between devices on the same network, while Layer 3 switches use IP addresses to route packets between different networks. Layer 3 switches are capable of performing some of the functions of a router, including routing between VLANs, while Layer 2 switches cannot.

Here's an example of configuring a Layer 2 switch using the Cisco IOS command line interface:

Switch(config)# interface fastEthernet 0/1
Switch(config-if)# switchport mode access
Switch(config-if)# switchport access vlan 10

And here's an example of configuring a Layer 3 switch:

Switch(config)# interface gigabitEthernet 0/1
Switch(config-if)# no switchport
Switch(config-if)# ip address 192.168.1.1 255.255.255.0
Switch(config-if)# no shutdown

A network firewall is a security device that monitors and filters incoming and outgoing network traffic based on a set of predefined security rules. It works by examining each packet in the network and determining whether to allow or block it based on the rules set by the administrator. There are several types of firewalls, including packet filtering, stateful inspection, proxy, and next-generation firewalls.

Packet filtering firewalls operate at the network layer and filter traffic based on source and destination IP addresses, port numbers, and protocols. Stateful inspection firewalls operate at the transport layer and keep track of the state of network connections to determine whether to allow or block traffic. Proxy firewalls work at the application layer and filter traffic based on the content of the packets, while next-generation firewalls combine various security technologies to provide advanced threat protection.

Here's an example of how to configure a basic packet filtering firewall using iptables in Linux:

# Allow incoming SSH traffic
iptables -A INPUT -p tcp --dport 22 -j ACCEPT

# Allow incoming HTTP traffic
iptables -A INPUT -p tcp --dport 80 -j ACCEPT

# Drop all other incoming traffic
iptables -P INPUT DROP

# Allow all outgoing traffic
iptables -P OUTPUT ACCEPT

To configure a virtual LAN (VLAN) on a switch, follow these general steps:

1. Access the switch's command line interface (CLI) using a console cable or telnet/SSH.
2. Create the VLAN using the vlan command and assign it a number and name:

   Switch# vlan 10
   Switch# name Sales


3. Assign specific switch ports to the VLAN using the interface command and setting the switchport access VLAN to the desired VLAN number:

   Switch# interface FastEthernet 0/1
   Switch# switchport mode access
   Switch# switchport access vlan 10


4. Save the configuration using the write command.

This example creates a new VLAN with ID 10 named "Sales" and assigns it to the switch port FastEthernet 0/1. Any device connected to that port will be part of the Sales VLAN.

A routing protocol is a set of rules used by routers to exchange information and route network traffic between different networks. Routing protocols enable routers to dynamically discover and select the best path for sending data packets, based on factors such as network topology and available bandwidth. Some examples of routing protocols include OSPF (Open Shortest Path First), BGP (Border Gateway Protocol), and RIP (Routing Information Protocol). These protocols are used to maintain accurate routing tables, which are then used to forward packets to their intended destinations.

To configure a site-to-site VPN, follow these general steps:

1. Configure the network topology for your VPN, such as the IP addresses and subnets for each site.
2. Configure the VPN devices on each site to establish a secure tunnel between them. This involves defining the VPN parameters, such as the encryption protocol, authentication method, and preshared key.
3. Configure the routing table for each site to route traffic through the VPN tunnel.
4. Test the VPN connection to ensure that it is working correctly.

Here is an example configuration using the open-source OpenVPN software:

# Server configuration
port 1194
proto udp
dev tun
server 10.8.0.0 255.255.255.0
ifconfig-pool-persist ipp.txt
push "route 192.168.1.0 255.255.255.0"
keepalive 10 120
tls-auth ta.key 0 # This file is secret
key-direction 0
cipher AES-256-CBC
auth SHA256
user nobody
group nobody
persist-key
persist-tun
status openvpn-status.log
verb 3

# Client configuration
client
dev tun
proto udp
remote my-server-1 1194
resolv-retry infinite
nobind
user nobody
group nobody
persist-key
persist-tun
remote-cert-tls server
tls-auth ta.key 1 # This file is secret
key-direction 1
cipher AES-256-CBC
auth SHA256
verb 3

This is a basic example, and the exact configuration may vary depending on the VPN solution being used.

An Intrusion Detection System (IDS) is a device or software application that monitors network or system activities for malicious activities or policy violations and reports them. It can identify and alert on suspicious activity, policy violations, and other potential security threats. IDS systems analyze network traffic and events and use predefined rules or machine learning to detect anomalies and malicious behavior. The two types of IDS are Network-based IDS (NIDS) and Host-based IDS (HIDS), which inspect network traffic or system logs respectively. The primary function of an IDS is to identify potential security breaches so that security personnel can investigate and mitigate the risk.

Here is an example of a simple IDS rule that detects a port scan attack and logs it:

Alert tcp any any -> $HOME_NET any (msg:"Port Scan Detected"; flags:S; threshold: type both, track by_src, count 5, seconds 60; sid:1000001; rev:001;)

To troubleshoot routing issues on a network, you can follow these steps:

1. Check the routing table of the affected device to ensure that the correct routes are present.

   show ip route


2. Verify the connectivity between the affected devices and the default gateway.

   ping <gateway IP address>


3. Check the routing protocol configuration on the devices to ensure that they are correctly configured.

   show running-config | section router


4. Use network diagnostic tools such as traceroute or tracert to determine where packets are being dropped or lost.

   traceroute <destination IP address>


5. Verify that the subnet masks on the network devices are correct and consistent.

By following these steps, you can diagnose and resolve most routing issues on a network.

A load balancer algorithm is used to distribute traffic across multiple servers in a load-balanced configuration. There are several types of load balancer algorithms, including round-robin, least connections, IP hash, and others. Round-robin distributes traffic equally among servers, while least connections routes traffic to the server with the fewest active connections. IP hash calculates a hash based on the source and destination IP addresses and then routes traffic to a server based on that hash. These algorithms help optimize the utilization of server resources and improve the overall performance and reliability of web applications.

A Network Address Translation (NAT) device works by translating private IP addresses to public IP addresses and vice versa to enable communication between devices on a private network and the internet. This is done by replacing the source IP address of outgoing packets with the NAT device's public IP address, and maintaining a translation table to route incoming packets to the correct destination on the private network. NAT can also be used to map a single public IP address to multiple private IP addresses, allowing multiple devices to share a single public IP address. Here is an example of how to configure NAT on a Cisco router:

interface GigabitEthernet0/1
 ip nat outside
!
interface GigabitEthernet0/2
 ip nat inside
!
ip nat inside source list 1 interface GigabitEthernet0/1 overload
access-list 1 permit any

To configure a DHCP server, you can use the following steps:

1. Install the DHCP server software on a computer on the network.
2. Configure the DHCP server by specifying the IP address range and lease duration.
3. Authorize the DHCP server in Active Directory (if using Windows Server).
4. Create a DHCP scope and configure any additional options such as DNS and default gateway.
5. Activate the DHCP scope and start the DHCP server service.

Here's an example of configuring a DHCP scope on a Windows Server using PowerShell:

Add-DhcpServerv4Scope -Name "MyScope" -StartRange 192.168.1.100 -EndRange 192.168.1.200 -SubnetMask 255.255.255.0 -LeaseDuration 8.00:00:00
Set-DhcpServerv4OptionValue -OptionId 003 -Value "192.168.1.1" -ScopeId "MyScope"
Set-DhcpServerv4OptionValue -OptionId 006 -Value "192.168.1.2" -ScopeId "MyScope"

This creates a DHCP scope named "MyScope" with an IP address range of 192.168.1.100 to 192.168.1.200, subnet mask of 255.255.255.0, and lease duration of 8 days. It also sets the default gateway and DNS server options for the scope.

A stateful firewall keeps track of the state of network connections and only allows packets that are part of an established connection. It inspects the header and payload of each packet to maintain state information. On the other hand, a stateless firewall is not aware of the state of network connections and inspects each packet in isolation. It only looks at the header of each packet to determine if it should be allowed or denied. Stateful firewalls offer better security and control, but are more resource-intensive than stateless firewalls.

Here is an example of a stateful firewall configuration using iptables on Linux:

iptables -A INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
iptables -A INPUT -p tcp --dport 22 -j ACCEPT
iptables -A INPUT -j DROP

This configuration allows incoming traffic on established connections, incoming SSH traffic on port 22, and drops all other incoming traffic.

A network segment is a portion of a network that is separated from the rest of the network by a network device such as a switch or router. This separation helps to improve network performance by reducing broadcast traffic and allowing for better management and control of network traffic. By segmenting a network, administrators can control the flow of data between different parts of the network, which helps to improve network efficiency and security. Network segments can be configured using virtual LANs (VLANs), which allow network traffic to be separated based on various criteria such as department, location, or application. Code snippets will depend on the specific network devices being used.

Link Aggregation (LAG) is used to combine multiple network connections into a single, high-bandwidth link. This can improve overall network performance and redundancy. To configure LAG on a switch, you need to first configure the switch ports and then set up LAG parameters. Here's an example configuration using Cisco IOS commands:

interface range gigabitEthernet 1/0/1 - 2
 speed 1000
 duplex full
 no shutdown
 channel-group 1 mode active
interface Port-channel 1
 description LAG connection to other switch
 switchport mode trunk
 switchport trunk allowed vlan 10,20,30

In this example, the configuration first sets the speed and duplex of two Gigabit Ethernet ports, and then creates a LAG with channel-group 1 using the "active" mode. Finally, the LAG is configured as a trunk port and allowed to carry traffic for VLANs 10, 20, and 30.

Virtual Private LAN Service (VPLS) is a technology used in computer networking to provide a Layer 2 Ethernet multipoint service over a packet-switched network. It allows multiple sites to appear as if they are on the same LAN, creating a virtualized LAN service across a wide area network (WAN).

VPLS is commonly used to connect multiple sites of an organization, providing a unified network infrastructure, regardless of physical location. It also enables seamless communication between different sites, making it ideal for organizations with distributed teams.

Here's an example configuration for a VPLS using the Cisco IOS command line interface:

interface VPLS 100
  vpls-id 100
  neighbor 10.0.0.1 encapsulation mpls
  neighbor 10.0.0.2 encapsulation mpls

This configuration creates a VPLS interface with an ID of 100 and connects to two neighbor devices with IP addresses of 10.0.0.1 and 10.0.0.2 using MPLS encapsulation.

Another example of VPLS implementation is using Junos OS command-line interface from Juniper Networks:

protocols {
    vpls {
        vpls-name vpls-100;
        neighbor 10.0.0.1 {
            interface ge-0/0/0.0;
        }
        neighbor 10.0.0.2 {
            interface ge-0/0/1.0;
        }
    }
}

This configuration sets up a VPLS named "vpls-100" and connects to two neighbor devices using the interfaces ge-0/0/0.0 and ge-0/0/1.0, respectively.

To troubleshoot issues with dynamic routing protocols, follow these steps:

1. Verify the routing protocol configuration on all routers in the network.
2. Check the routing table on each router to ensure it is learning and advertising the correct routes.
3. Use the show commands for the specific routing protocol to check for any errors or inconsistencies.
4. Verify connectivity between the routers using ping or traceroute.
5. Check for any network issues or changes that may have caused the problem.

Here's an example of using the show command to troubleshoot OSPF on a Cisco router:

show ip ospf neighbor

This command displays the OSPF neighbor relationships and their status. If there are any neighbor relationships that are down, it can indicate an issue with the routing protocol configuration or network connectivity.

Here's an example of using the show command to troubleshoot BGP on a Juniper router:

show bgp summary

This command displays the BGP peer status and their state. If any peers are in the idle or active state, it can indicate an issue with the routing protocol configuration or network connectivity.

By following these steps and using the appropriate show commands, network engineers can identify and resolve issues with dynamic routing protocols in their network.

A route reflector is a feature used in large-scale networks running Border Gateway Protocol (BGP) to simplify the configuration and management of BGP routes. It allows a BGP speaker to receive and forward routing information to other BGP speakers, without requiring a full mesh of BGP peer relationships. This helps to reduce the number of required BGP peer connections, which can become unmanageable in large-scale networks.

In a route reflector topology, one or more routers are configured as route reflectors, and other routers in the network establish BGP peer relationships with the route reflectors.

Here's an example of configuring a route reflector on a Cisco router:

router bgp 65001
bgp cluster-id 1.1.1.1
neighbor 192.168.1.2 remote-as 65002
neighbor 192.168.1.2 route-reflector-client

This configuration sets up a route reflector with a cluster ID of 1.1.1.1 and establishes a BGP peer relationship with a neighbor at IP address 192.168.1.2, with the "route-reflector-client" command indicating that this neighbor is a route reflector client.

Here's an example of configuring a route reflector on a Juniper router:

set routing-options autonomous-system 65001
set protocols bgp group RR type internal
set protocols bgp group RR cluster 1.1.1.1
set protocols bgp group RR neighbor 192.168.1.2 peer-as 65002
set protocols bgp group RR neighbor 192.168.1.2 route-reflector-client

This configuration sets up a route reflector with an autonomous system number of 65001 and establishes a BGP peer relationship with a neighbor at IP address 192.168.1.2, with the "route-reflector-client" command indicating that this neighbor is a route reflector client. The "cluster" command sets the route reflector cluster ID to 1.1.1.1.

A network tap is a hardware device used for network monitoring and security analysis. It allows passive access to network traffic passing through a physical link, without interfering with the normal operation of the network. Network taps are used to capture and analyze network traffic, which can help with troubleshooting network issues, detecting security threats, and optimizing network performance.

Here's an example of configuring a network tap on a Cisco switch:

monitor session 1 source interface GigabitEthernet0/1
monitor session 1 destination interface GigabitEthernet0/2

This configuration sets up a monitoring session on GigabitEthernet0/1, and forwards the traffic to GigabitEthernet0/2 for analysis.

Here's an example of configuring a network tap on a Linux server using the tcpdump command:

tcpdump -i eth0 -w capture.pcap

This command captures network traffic on the eth0 interface and writes it to a file named capture.pcap. The resulting file can be analyzed with tools like Wireshark for network troubleshooting and security analysis.

To configure an access control list (ACL) on a router, follow these steps:

1. Define the ACL with a name or number and specify the type (standard or extended).
2. Specify the permit or deny statements for the ACL, along with the source and/or destination IP addresses, protocols, and ports.
3. Apply the ACL to an interface, direction, or globally.

Here's an example of configuring a standard ACL on a Cisco router:

access-list 10 permit 192.168.1.0 0.0.0.255
access-list 10 deny any
interface GigabitEthernet0/0
ip access-group 10 in

This configuration sets up a standard ACL named 10 that permits traffic from the 192.168.1.0/24 network and denies all other traffic. The ACL is then applied inbound to the GigabitEthernet0/0 interface.

Here's an example of configuring an extended ACL on a Juniper router:

set firewall family inet filter ACL term 1 from source-address 192.168.1.0/24
set firewall family inet filter ACL term 1 then accept
set firewall family inet filter ACL term 2 then reject
set interfaces ge-0/0/0 unit 0 family inet filter input ACL

This configuration sets up an extended ACL named ACL that permits traffic from the 192.168.1.0/24 network and rejects all other traffic. The ACL is then applied inbound to the ge-0/0/0 interface.

SSL (Secure Sockets Layer) and TLS (Transport Layer Security) are both cryptographic protocols used for secure communication over a network. SSL was the predecessor to TLS, which is now the more commonly used protocol.

The main differences between SSL and TLS are in their design and security features. TLS has more secure cipher suites, better authentication mechanisms, and improved key exchange protocols. Additionally, SSL is no longer considered secure and has been deprecated.

Here's an example of configuring SSL/TLS on an Apache web server:

SSLEngine on
SSLCertificateFile /path/to/cert.pem
SSLCertificateKeyFile /path/to/key.pem

This configuration enables SSL/TLS on the Apache web server and specifies the path to the SSL certificate and private key files.

Here's an example of configuring SSL/TLS on an Nginx web server:

ssl_certificate /path/to/cert.pem;
ssl_certificate_key /path/to/key.pem;
ssl_protocols TLSv1.2 TLSv1.3;

This configuration enables SSL/TLS on the Nginx web server and specifies the path to the SSL certificate and private key files, as well as the TLS protocols to use.

To configure a wireless network to use WPA3 encryption, follow these steps:

1. Ensure that your wireless access points and devices support WPA3.
2. Configure your wireless access point to use WPA3-Enterprise or WPA3-Personal.
3. Set up the authentication and encryption parameters, such as a passphrase or a RADIUS server.

Here's an example of configuring a wireless network with WPA3-Personal using the command line interface of a Cisco wireless access point:

config t
dot11 ssid mynetwork
authentication wpa3-psk
wpa3-psk passphrase mypassphrase
exit

This configuration sets up a wireless network named "mynetwork" with WPA3-Personal authentication using a passphrase of "mypassphrase".

Here's an example of configuring a wireless network with WPA3-Enterprise using the web interface of a Ubiquiti wireless access point:

1. Go to the "Wireless Networks" section of the web interface.
2. Click "Create New Wireless Network".
3. Enter a name for the network and choose "WPA3-Enterprise" as the security type.
4. Enter the authentication and encryption parameters, such as the RADIUS server address and secret.
5. Click "Save" to apply the configuration.

BGP (Border Gateway Protocol) is an exterior gateway protocol used for routing between autonomous systems (AS) in the Internet. BGP routers exchange routing information in the form of network reachability information (prefixes) and path attributes. BGP uses policies to determine the best path for a given prefix based on attributes such as AS path length, local preference, and MED (multi-exit discriminator). BGP plays a critical role in the Internet routing system, allowing ISPs to exchange routing information and enabling end-to-end communication between networks.

Here's an example of a BGP configuration on a Cisco router:

router bgp 65001
neighbor 10.0.0.2 remote-as 65002
network 192.168.1.0 mask 255.255.255.0

This configuration sets up a BGP router with an autonomous system number of 65001. It also specifies a neighbor with IP address 10.0.0.2 and AS number 65002, and announces the network 192.168.1.0/24 to that neighbor.

Here's an example of a BGP configuration on a Juniper router:

protocols {
    bgp {
        group mygroup {
            type external;
            neighbor 10.0.0.2 {
                peer-as 65002;
            }
            family inet {
                unicast {
                    network 192.168.1.0/24;
                }
            }
        }
    }
}

This configuration sets up a BGP group with a type of external and specifies a neighbor with IP address 10.0.0.2 and AS number 65002. It also announces the network 192.168.1.0/24 to that neighbor.

MPLS (Multiprotocol Label Switching) is a protocol used in packet-switched networks to improve the speed and efficiency of data transmission. MPLS works by assigning labels to packets, which are then used to forward packets through the network along a pre-determined path. This enables faster and more efficient routing, as packets do not need to be analyzed and routed based on their IP addresses at every hop. MPLS is often used by service providers to offer virtual private network (VPN) services to customers.

Here's an example of an MPLS configuration on a Cisco router:

interface GigabitEthernet0/1
ip address 10.0.0.1 255.255.255.0
mpls ip
!
interface GigabitEthernet0/2
ip address 10.0.1.1 255.255.255.0
mpls ip
!
router ospf 1
network 10.0.0.0 0.0.0.255 area 0
network 10.0.1.0 0.0.0.255 area 0
mpls ldp autoconfig

This configuration sets up two interfaces with IP addresses, and enables MPLS on each interface. It also sets up OSPF routing and enables MPLS LDP (Label Distribution Protocol) auto-configuration.

Here's an example of an MPLS configuration on a Juniper router:

interfaces {
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 10.0.0.1/24;
                mpls;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 10.0.1.1/24;
                mpls;
            }
        }
    }
}
protocols {
    ospf {
        area 0.0.0.0 {
            interface ge-0/0/0.0;
            interface ge-0/0/1.0;
        }
    }
    ldp {
        interface all;
    }
}

This configuration sets up two interfaces with IP addresses, and enables MPLS on each interface. It also sets up OSPF routing and enables LDP on all interfaces.

SDN (Software-Defined Networking) is a network architecture approach that separates the control plane from the data plane in networking devices, allowing for centralized management and configuration of the network.

In SDN, the control plane is managed by a centralized controller, which communicates with network devices using protocols such as OpenFlow. The controller receives information about the network and makes decisions about how to route traffic based on that information.

Some benefits of SDN include simplified network management, improved network agility, and easier implementation of network security policies. Here's an example of an SDN controller configuration using the OpenDaylight controller:

feature:install odl-restconf-all
feature:install odl-l2switch-switch-ui
feature:install odl-mdsal-apidocs
feature:install odl-dlux-core

This code installs several features on the OpenDaylight SDN controller, including RESTCONF, L2 Switch UI, and MD-SAL API docs. These features provide a web-based interface for managing the SDN network, as well as APIs for configuring the network programmatically.

OSPF (Open Shortest Path First) is a link-state routing protocol used in IP networks. OSPF routers exchange information about their connected links and use this information to build a topology map of the network. Each router then calculates the shortest path to every other router in the network using Dijkstra's algorithm.

OSPF uses a hierarchical structure with areas to scale to large networks. OSPF routers in the same area have identical topology information, which reduces the amount of routing information that needs to be exchanged. OSPF routers in different areas exchange summary information, which further reduces the amount of routing information.

OSPF is commonly used in large enterprise networks and service provider networks. Here's an example of how to configure OSPF on a Cisco router:

router ospf 1
 network 10.0.0.0 0.255.255.255 area 0
 network 172.16.0.0 0.0.255.255 area 1

This code configures OSPF with process ID 1 and defines two networks, one in area 0 and one in area 1. The router will advertise these networks to other OSPF routers in the same areas.

A Content Delivery Network (CDN) is a distributed network of servers that delivers content to users based on their geographic location. CDN servers cache content such as images, videos, and web pages, and deliver them to users from the closest server, reducing latency and improving the user experience.

CDNs are commonly used by websites and applications that serve large amounts of static content to a global audience, such as media streaming services and e-commerce sites.

Here's an example of how to configure a CDN using Amazon CloudFront:

aws cloudfront create-distribution \
    --origin-domain-name example.com \
    --default-root-object index.html \
    --enabled \
    --price-class PriceClass_100 \
    --viewer-protocol-policy redirect-to-https \
    --default-cache-behavior forward-all \
    --distribution-config "minTTL=3600,maxTTL=86400,defaultTTL=7200,forwardedValues={querystring=true,cookies={forward=all},headers={}}"`

This code creates a CloudFront distribution that caches content from the domain example.com and forwards all requests to the origin. The distribution is configured to redirect HTTP requests to HTTPS, and to cache content for a default of 7200 seconds.

A Software Load Balancer is a load balancing solution that runs as software on standard server hardware or in a virtualized environment. It distributes incoming network traffic across multiple servers to improve performance, reliability, and scalability of applications.

In contrast, a hardware load balancer is a specialized network appliance designed to perform load balancing. It is typically more expensive and has a dedicated purpose-built hardware platform.

Software load balancers offer the advantage of flexibility and cost-effectiveness, as they can be deployed in a variety of environments and often come with more customizable features. Here's an example of how to configure a software load balancer using NGINX:

http {
    upstream backend {
        server backend1.example.com;
        server backend2.example.com;
    }
    server {
        listen 80;
        location / {
            proxy_pass http://backend;
            proxy_set_header Host $host;
            proxy_set_header X-Real-IP $remote_addr;
            proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
        }
    }
}

This code configures an NGINX load balancer to distribute traffic across two backend servers using the Round Robin algorithm. The load balancer also sets the X-Forwarded-For and X-Real-IP headers to preserve client IP addresses for logging and debugging purposes.

Network virtualization allows multiple virtual networks to coexist on a single physical network infrastructure, creating logical abstractions of the underlying network. It uses software to abstract the network from the underlying hardware, providing a more flexible and dynamic network environment. Network virtualization enables the creation of isolated virtual networks with their own security policies, addressing schemes, and routing tables, even when sharing the same physical infrastructure.

Benefits of network virtualization include improved resource utilization, faster service delivery, increased flexibility, and better security. Here's an example of how to configure network virtualization using the VMware NSX platform:

# Create a logical switch for virtual machines to connect to
New-NsxVirtualWire -Name "VirtualSwitch1" -Tenant "MyTenant" -Description "Logical switch for virtual machines" -ControlPlaneMode "UNICAST_MODE"

# Configure logical routing between different virtual networks
New-NsxLogicalRouter -Name "LogicalRouter1" -Tenant "MyTenant" -Description "Logical router for virtual networks" -EdgeClusterId "EdgeCluster1"

# Create a distributed firewall to enforce security policies
New-NsxSecurityPolicy -Name "MyFirewallPolicy" -Tenant "MyTenant" -Description "Security policy for virtual networks" -Action "ALLOW" -LoggingEnabled $true -Rule @{"Name"="AllowSSH"; "Source"="VirtualSwitch1"; "Destination"="VirtualSwitch2"; "Services"="SSH"; "Direction"="IN_OUT"}

This code creates a logical switch for virtual machines to connect to, a logical router to route traffic between virtual networks, and a distributed firewall to enforce security policies. These virtual network abstractions can be easily created, modified, and deleted to meet changing network requirements.

Configuring a wireless mesh network involves setting up multiple mesh access points that can communicate with each other wirelessly, creating a self-forming and self-healing network. Here's an example of how to configure a wireless mesh network using the Open Mesh platform:

# Connect the first mesh access point to the wired network and configure it as the gateway
ssh root@meshap1.local
configure
network uplink dhcp
network vlan 1
network dhcp on
network address dhcp
gateway dhcp

# Connect additional mesh access points to the network and add them to the mesh network
ssh root@meshap2.local
configure
network uplink dhcp
network vlan 1
mesh uplink ether1
mesh id MyMeshNetwork
mesh channel auto

This code configures the first mesh access point as the gateway and connects additional mesh access points to the network, adding them to the mesh network using the same mesh network ID. The mesh access points will automatically discover and communicate with each other wirelessly, forming a self-forming and self-healing network. This allows devices to connect to any mesh access point in the network and seamlessly roam between access points without losing their connection.

There are various types of network attacks that can compromise the security and integrity of a network. Some of the most common types of network attacks include:

• Denial-of-service (DoS) attacks
• Man-in-the-middle (MitM) attacks
• Phishing attacks
• Malware attacks

To defend against these types of attacks, network administrators can take various measures, including:

• Implementing firewalls and intrusion detection/prevention systems
• Using strong authentication methods, such as multi-factor authentication
• Encrypting network traffic using protocols like SSL/TLS
• Keeping software and systems up-to-date with the latest security patches and updates

Here's an example of how to configure a firewall to block incoming traffic from a specific IP address:

# Configure the firewall to block incoming traffic from the IP address 192.168.1.100
iptables -A INPUT -s 192.168.1.100 -j DROP

This code adds a rule to the firewall's INPUT chain to drop all incoming traffic from the specified IP address. This can help defend against DoS and MitM attacks by blocking traffic from known malicious sources.

A software-defined WAN (SD-WAN) is a type of networking technology that uses software to simplify and optimize the management of a wide area network (WAN). It allows network administrators to manage and control network traffic more effectively, while also improving network performance and reducing costs. SD-WAN achieves this by abstracting the network hardware and infrastructure, allowing administrators to manage the network using software-defined policies.

Here's an example of how to configure SD-WAN using a popular open-source platform called Open vSwitch (OVS):

# Create a new OVS bridge for the SD-WAN network
ovs-vsctl add-br sdwan

# Add physical network interfaces to the bridge
ovs-vsctl add-port sdwan eth0
ovs-vsctl add-port sdwan eth1

# Create an SD-WAN policy to prioritize traffic from certain applications
ovs-vsctl set interface eth0 options:sdwan-priority=high
ovs-vsctl set interface eth1 options:sdwan-priority=

OpenFlow is a protocol used in Software-Defined Networking (SDN) to control the flow of network traffic in a centralized and programmable way. It separates the control plane from the data plane, allowing network administrators to manage the network through software-defined policies. OpenFlow-enabled switches can be programmed to direct traffic based on specific criteria, such as source and destination address or application type.

Here's an example of how OpenFlow works in SDN using the popular open-source platform, OpenDaylight:

# Install OpenDaylight controller and OpenFlow plugin
sudo apt-get install opendaylight odl-openflowplugin-all

# Connect OpenFlow-enabled switches to the controller
sudo ovs-vsctl set-controller br0 tcp:127.0.0.1:6633

# Configure OpenFlow rules to forward traffic based on source and destination addresses
sudo ovs-ofctl add-flow br0 priority=100,ip,nw_src=10.0.0.1,nw_dst=10.0.0.2,actions=output:2
sudo ovs-ofctl add-flow br0 priority=100,ip,nw_src=10.0.0.2,nw_dst=10.0.0.1,actions=output:1

In this example, the OpenDaylight controller is installed and the OpenFlow plugin is used to manage traffic flow through an OpenFlow-enabled switch. OpenFlow rules are created to direct traffic between two IP addresses, and actions are specified to output the traffic to a specific port.

A software-defined data center (SDDC) is a data center where all infrastructure is virtualized and delivered as a service. Unlike traditional data centers where each component is managed independently, SDDC uses software to manage and automate the entire data center infrastructure. This includes compute, storage, and networking resources, which are abstracted from the underlying hardware and managed centrally using software. This provides greater flexibility, scalability, and agility, as well as reduced operational costs. Examples of SDDC software include VMware vSphere, Microsoft Azure Stack, and OpenStack.

Network Function Virtualization (NFV) is the virtualization of network functions that are traditionally performed by dedicated hardware devices such as routers, firewalls, and load balancers. NFV uses virtualization technologies to abstract and consolidate these functions onto standard x86-based servers, enabling network operators to deploy network services more quickly, flexibly and cost-effectively. NFV can be used to create virtualized network services like virtual routers, virtual firewalls, virtual load balancers, and virtual WAN optimization appliances. Examples of NFV software include Open vSwitch (OVS), OpenStack, and VMware NSX.

A data center fabric is a high-performance, low-latency network architecture that connects servers, storage, and other network resources within a data center. It is typically built using switches with high port density and low latency, and uses advanced features such as quality of service (QoS), traffic engineering, and network virtualization to provide a highly flexible and scalable network infrastructure. A data center fabric can improve application performance, simplify network management, and reduce operational costs. Examples of data center fabric technologies include Cisco Nexus, Juniper QFabric, and Arista Networks.

A next-generation firewall (NGFW) is a network security system that combines traditional firewall functionality with advanced security technologies such as intrusion prevention, application control, and threat intelligence. It provides more sophisticated security features than a traditional firewall, allowing administrators to identify and block advanced threats, such as malware and ransomware. NGFWs use packet filtering to inspect incoming and outgoing traffic to prevent unauthorized access to networks. They also provide deep visibility and control of network traffic to help prevent data breaches. Some popular NGFW solutions include Palo Alto Networks, Fortinet, and Check Point.

Micro-segmentation is a method of network segmentation that divides a network into smaller, isolated segments to increase security. To configure network segmentation using micro-segmentation, first, identify the network segments that require isolation, then assign security policies to each segment. Use a security tool such as a firewall or a virtualization platform to enforce the security policies. For example, in VMware NSX, you can create security groups and policies to control traffic between VMs.

security_groups:
  - name: app-servers
    rules:
      - name: allow-http
        services: [http]
      - name: allow-https
        services: [https]
  - name: database-servers
    rules:
      - name: allow-db
        services: [mysql, postgresql]

from nsx_client import NSXClient

client = NSXClient(api_url='https://nsx-manager.local',
                   username='admin', password='password')

client.create_security_group(name='app-servers', description='Application servers')
client.create_security_group(name='database-servers', description='Database servers')

client.add_security_group_member('app-servers', 'web-1')
client.add_security_group_member('app-servers', 'web-2')
client.add_security_group_member('database-servers', 'db-1')

client.create_security_policy(name='app-policy', security_groups=['app-servers'], applied_to=['web-1', 'web-2'])
client.create_security_policy(name='db-policy', security_groups=['database-servers'], applied_to=['db-1'])

A Software-Defined Perimeter (SDP) is a security model that uses a "zero trust" approach to secure network connections. It dynamically creates secure access to specific applications or resources, based on user authentication and authorization, and encrypts all traffic to prevent eavesdropping and man-in-the-middle attacks. This approach reduces the attack surface by limiting network visibility and access, and prevents unauthorized users from accessing sensitive data. SDP can be implemented using software-based solutions and APIs, and can integrate with existing security tools, such as firewalls and intrusion detection systems.

Here's an example of how an SDP solution might be implemented using a software-defined networking (SDN) controller and network function virtualization (NFV):

+------------------+            +------------------+
|    User device   |            |    Application   |
|                  |            |      server      |
+------------------+            +------------------+
        |                              |
        +------------------------------+
                   Internet
        +------------------------------+
        |                              |
+------------------+            +------------------+
|      SDP GW      |            |    SDN Controller |
|                  |            |     (NFV-based)   |
+------------------+            +------------------+

In this example, the SDP Gateway acts as a security proxy, authenticating and authorizing users and encrypting traffic. The SDN Controller manages network policies and services, and can dynamically create and enforce micro-segmentation rules to restrict access to specific applications or resources. NFV-based functions, such as firewalls and intrusion detection systems, can be deployed as virtual network functions (VNFs) and used to enforce security policies at the network level.

Policy-based routing (PBR) allows network administrators to define routing policies for specific traffic flows, based on criteria such as source or destination IP address, protocol, or port number. This can be useful for directing traffic along specific paths or to apply different quality of service (QoS) policies.

To configure PBR, you first need to define an access list that matches the desired traffic. Then, you can create a route map that associates the access list with a set of routing actions, such as a next-hop IP address or an output interface. Finally, you can apply the route map to an interface using the ip policy command.

Here is an example configuration:

access-list 10 permit ip 192.168.1.0 0.0.0.255 any

route-map my-policy permit 10
 match ip address 10
 set ip next-hop 10.0.0.1

interface FastEthernet0/0
 ip address 192.168.1.1 255.255.255.0
 ip policy route-map my-policy

In this example, we create an access list that matches traffic from the 192.168.1.0/24 subnet, and a route map that sets the next-hop IP address to 10.0.0.1 for traffic that matches the access list. Finally, we apply the route map to the interface connecting to the 192.168.1.0/24 subnet using the ip policy command.

A Data Center Interconnect (DCI) is a network system that connects two or more data centers over a distance. It is used to facilitate the sharing of resources and data between data centers for redundancy, disaster recovery, or workload migration. DCI technology can be implemented using various technologies such as MPLS, VPLS, VXLAN, EVPN, and others. DCI offers benefits such as high availability, scalability, and flexibility in connecting geographically dispersed data centers. Below is an example of configuring DCI using VXLAN in Cisco Nexus switches:

interface nve1
  source-interface loopback0
  host-reachability protocol bgp
  member vni 10001
    ingress-replication protocol multicast
    suppress-arp
    mcast-group 239.1.1.1
    associate-vrf vrf1

A network overlay is a virtual network that is created on top of an existing physical network. It allows network administrators to create multiple logical networks, each with its own unique network policies and security mechanisms, while still using the same underlying physical network infrastructure. This improves network scalability and flexibility, as virtual networks can be created and torn down as needed without affecting the underlying physical infrastructure. One example of a network overlay technology is VXLAN (Virtual Extensible LAN), which encapsulates Layer 2 Ethernet frames within Layer 3 IP packets to create a virtual Layer 2 network over a Layer 3 infrastructure.

When troubleshooting BGP routing issues on a network, some steps to take include verifying the BGP configuration, checking BGP neighbor relationships, examining the routing tables, and looking for any route filtering or policy issues. Tools like ping, traceroute, and show commands can be used to diagnose the problem. Below is an example of how to check BGP neighbor status using the "show ip bgp summary" command on a Cisco router:

Router# show ip bgp summary
BGP router identifier 192.168.1.1, local AS number 100
BGP table version is 1, main routing table version 1
Neighbor     V    AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
10.0.0.2     4   200      12      12        1    0    0  00:00:55        0

This output shows that there is one BGP neighbor (AS 200) with an IP address of 10.0.0.2. The "State/PfxRcd" column indicates the current state of the BGP session and the number of prefixes received from that neighbor.

A software-defined wide area network (SD-WAN) is a type of networking technology that allows organizations to leverage multiple types of connections, including broadband internet, to connect geographically dispersed locations. SD-WAN uses software to intelligently route traffic over the most optimal path, dynamically adjusting as needed to ensure optimal performance and reliability. This improves network performance by reducing latency and packet loss, and can also reduce costs by allowing organizations to use less expensive connections.

When two networks have overlapping IP addresses, Network Address Translation (NAT) can be used to resolve the conflict. NAT allows traffic from one network to pass through a device with a different IP address before being forwarded to the destination network. To configure NAT, first create an access list to identify the traffic to be translated. Then, create a NAT rule to define the translation. Finally, apply the NAT rule to the appropriate interfaces.

Here's an example of configuring NAT using Cisco IOS commands:

access-list 100 permit ip 192.168.1.0 0.0.0.255 192.168.2.0 0.0.0.255
ip nat inside source list 100 interface FastEthernet0/1 overload
interface FastEthernet0/0
 ip nat outside
!
interface FastEthernet0/1
 ip nat inside

In this example, access list 100 permits traffic from the 192.168.1.0/24 network to the 192.168.2.0/24 network. The NAT rule specifies that traffic matching this access list will be translated to use the IP address of interface FastEthernet0/1. Finally, the NAT rule is applied to the inside and outside interfaces.

A content delivery network (CDN) is a distributed network of servers that delivers web content to users based on their geographic location. When a user requests content from a website, the CDN identifies the server closest to the user and delivers the content from that server. This reduces latency and improves website performance. CDNs can also protect against distributed denial-of-service (DDoS) attacks by distributing traffic across multiple servers. To use a CDN, a website owner can sign up for a CDN service, configure their DNS to point to the CDN, and configure caching and other settings as needed.

Example code snippet for configuring a CDN with Amazon CloudFront:

# create a new distribution
aws cloudfront create-distribution \
  --origin-domain-name mywebsite.com \
  --default-root-object index.html \
  --enabled

# configure caching
aws cloudfront update-distribution \
  --id E1234567890 \
  --default-cache-behavior.ttl 86400 \
  --cache-behavior-items file://cache-behavior.json

# configure custom SSL certificate
aws acm request-certificate \
  --domain-name mywebsite.com \
  --validation-method DNS

aws cloudfront create-cloud-front-origin-access-identity \
  --cloud-front-origin-access-identity-config caller-reference=1234567890 \
  --query 'CloudFrontOriginAccessIdentity.Id' \
  --output text

aws cloudfront create-distribution \
  --origin-domain-name mywebsite.com \
  --default-root-object index.html \
  --viewer-certificate ACM \
  --viewer-certificate-arn arn:aws:acm:us-west-2:1234567890:certificate/12345678-1234-1234-1234-1234567890 \
  --origin-ssl-protocols TLSv1.2 \
  --price-class PriceClass_All \
  --enabled \
  --aliases file://aliases.json

To prevent distributed denial-of-service (DDoS) attacks, you should implement a layered defense strategy that includes a combination of network and application-level protections. Network-level protections can include using firewalls, intrusion prevention systems (IPS), and traffic filtering to block or rate-limit suspicious traffic. Application-level protections can include load balancing and content caching to distribute traffic across multiple servers and reduce the impact of a DDoS attack. You can also use tools like DDoS scrubbing services that provide additional layers of protection by filtering out unwanted traffic before it reaches your network.

An Internet Exchange Point (IXP) is a physical location where Internet Service Providers (ISPs) and Content Providers (CPs) connect their networks to exchange traffic. The IXP acts as a hub, enabling direct peering between networks, reducing latency and transit costs. IXPs use switches to interconnect networks and use protocols like Border Gateway Protocol (BGP) for routing. By connecting to an IXP, networks can increase their routing efficiency, reduce their reliance on transit providers, and improve the performance and reliability of their network.

Example of configuring BGP peering at an IXP using the configuration language of a common router operating system:

router bgp 65001
 neighbor 192.0.2.1 remote-as 65000
 neighbor 192.0.2.1 update-source Loopback0
 neighbor 192.0.2.1 ebgp-multihop 2
 neighbor 192.0.2.1 soft-reconfiguration inbound
!
 address-family ipv4
  neighbor 192.0.2.1 activate
  neighbor 192.0.2.1 soft-reconfiguration inbound
  neighbor 192.0.2.1 route-map IXP-IN in
  neighbor 192.0.2.1 route-map IXP-OUT out
 exit-address-family
